High speed Pulverizer/Granulator

High speed Pulverizer/Granulator

Introduction

Huanchuang Granulators are high speed granulation machines designed for reducing various materials and recycling varities of waste. These machines are ideal for processing a multitude of materials including plastics, rubber, copper cable and organics etc. They are ideal secondary pulverizer of the multitude production line. Output particle size will be 5-60mm.

·  Compact design minimizes on-site space requirements

·  Inclined, split cutting chamber design

·  Oversized, outboard spherical rotor bearings – prevents bearing damage due to product migration

·  Precision machined rotors (Forward set V-Rotor as standard)

·  Replaceable wear plates at either end of the rotor shaft

·  Standard machines are prepared for air extraction

·  Stand Alone Electrical Control Panel - Siemens PLC’s

·  Tested, Approved and Certified to the applicable CE safety standardsRotor and Blade

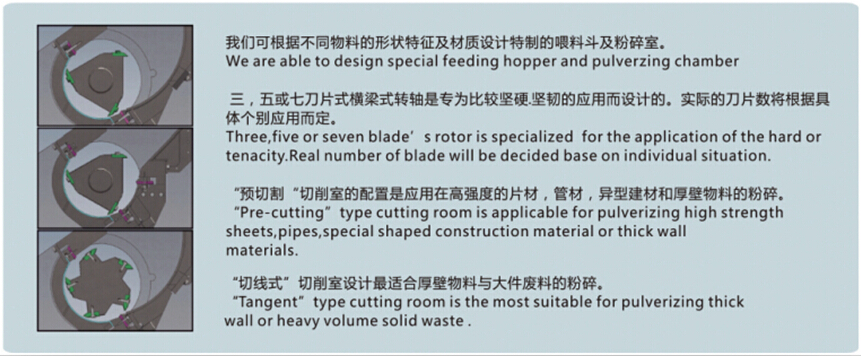

Structure features

1. R-type Rotor

This rotor is main suitable for pulverizing hard pipe, wire, thick wall material and sheets etc.







2. V-type Rotor


This rotor is main suitable
for pulverizing PET bottles,
normal pipe, tube, film etc.





3. S-type Rotor


This rotor is main suitable for
pulverizing very hard materials
such as rubber head, thick wall
pipe, thick board, power cable
or line pulverizing
RDF(20-30mm).

4. K-type Rotor


This type is suitable to secondary
pulverizing treatment for any
material besides metallic material.
